  • Article: SI-2
Wi-Fi controller for remote collection of readings and control of sensors. Supports up to 2 devices: water, gas, heat meters. Runs on 3 AA batteries for 3 years or more. Does not require 220V.

Features

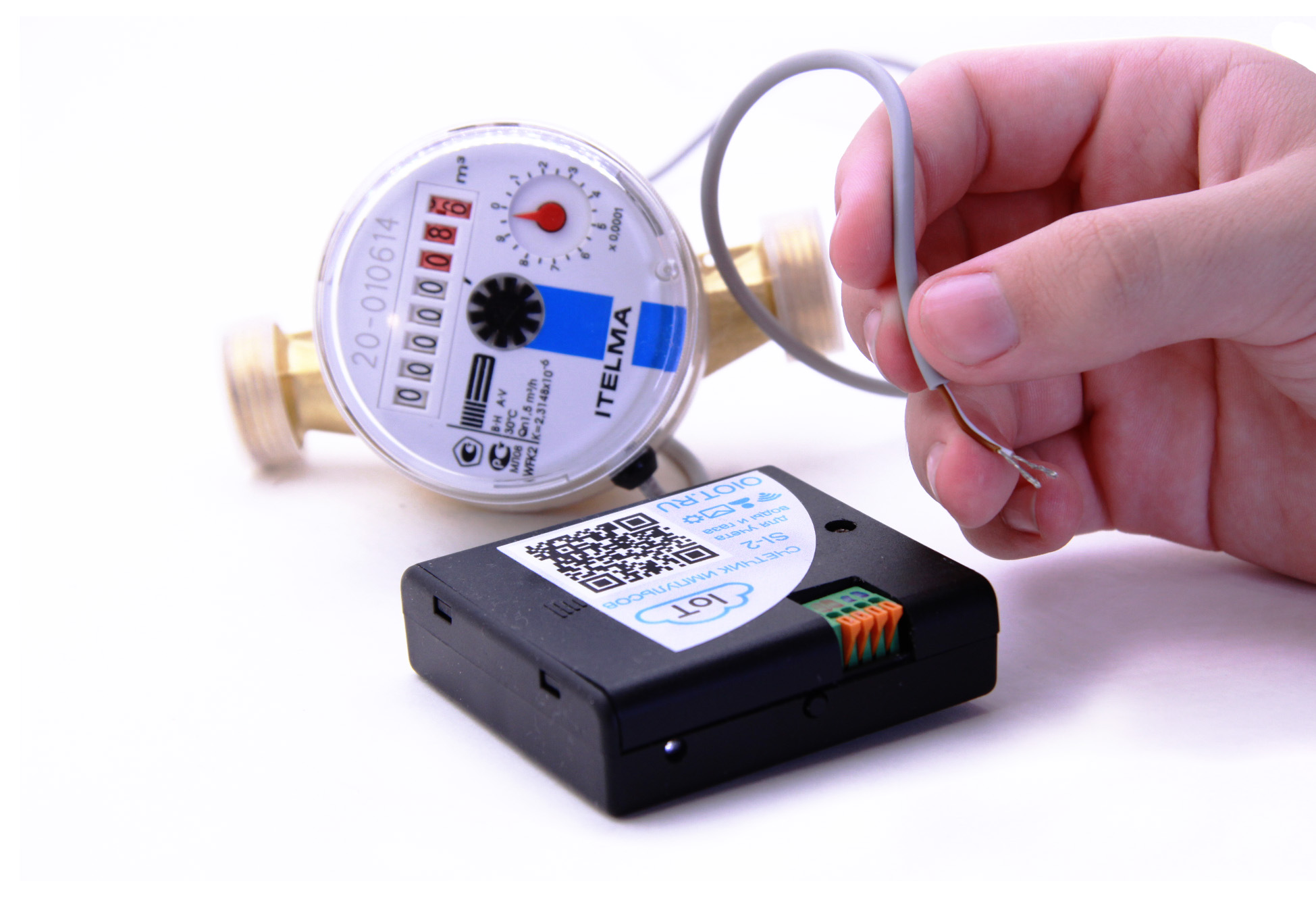

Installed in close proximity to resource meters or sensors, distance up to 50 meters (when using twisted pair). The controller has 2 channels for connecting devices in any combination:

  • pulse meters water/gas/heat

Data collection, alerting and reporting

The device collects data from counters and sensors and transfers them to your personal account. In normal mode, data is sent once a day. You can view sensor statuses, readings and graphs on your mobile phone using a browser or mobile application for iOS and Android.

In your personal account, you can set the day and hour of the month to automatically send readings to your management company. Readings can be sent in the following ways: as a PUSH notification, as an EMAIL, connections to other service provider APIs are possible

Forget about the routine of taking and transmitting readings manually every month!

All events are logged and visible in your my account.

Nutrition

Three AA batteries with a voltage of 1.5 Volts (alkaline recommended), battery life of at least 3 years when transferring data to your personal account once a day. If there is no indication for more than two days, the user will be sent a corresponding EMAIL notification. Batteries  are included.

Transmission method

Accesses the Internet using a private or public Wi-Fi network. Two networks can be used: main and backup.

Installation

20 minutes per si-2 transmitter. Instructions, batteries included! To set up and run, you only need any device with WiFi and a browser: smartphone, tablet, laptop, desktop computer. Installation instructions can also be obtained on the Internet using the QR code on the controller case.!


Wi-Fi network requirements

Any network with a frequency of 2.4 GHz and the b / g / n standard is suitable for the operation of our controller. Note, 5GHz frequency and ac standard are not supported!

The controller transfers kilobytes of information in one session, so it is completely undemanding to network speed and signal quality. With a signal level of even -95 dBm, you will receive stable information about the readings.

Equipment

  • 1 x SI-2 controller
  • Alkaline batteries - 3pcs
  • Controller Passport - 1pc

The controller comes in a cardboard box.

Характеристики

  • signal transmission WIFI
  • data chanel Wi-Fi 2400 MHz
  • Number of inputs for connecting devices 2
  • hull protection IP54
  • Operating conditions without direct exposure to the sun and precipitation
  • Applications Ios, Android
  • Manufacturer OIOT
  • Article SI-2
  • Power 3xAA(included)
  • antenna Integrated PCB (on printed circuit board)
  • power consumption 1W
  • operating temperature range +5 to +60°C
  • case overall dimensions 65x65x20mm
  • Color black
Smart pulse counter SI-2. Water meter readings via wifi
$41.85
